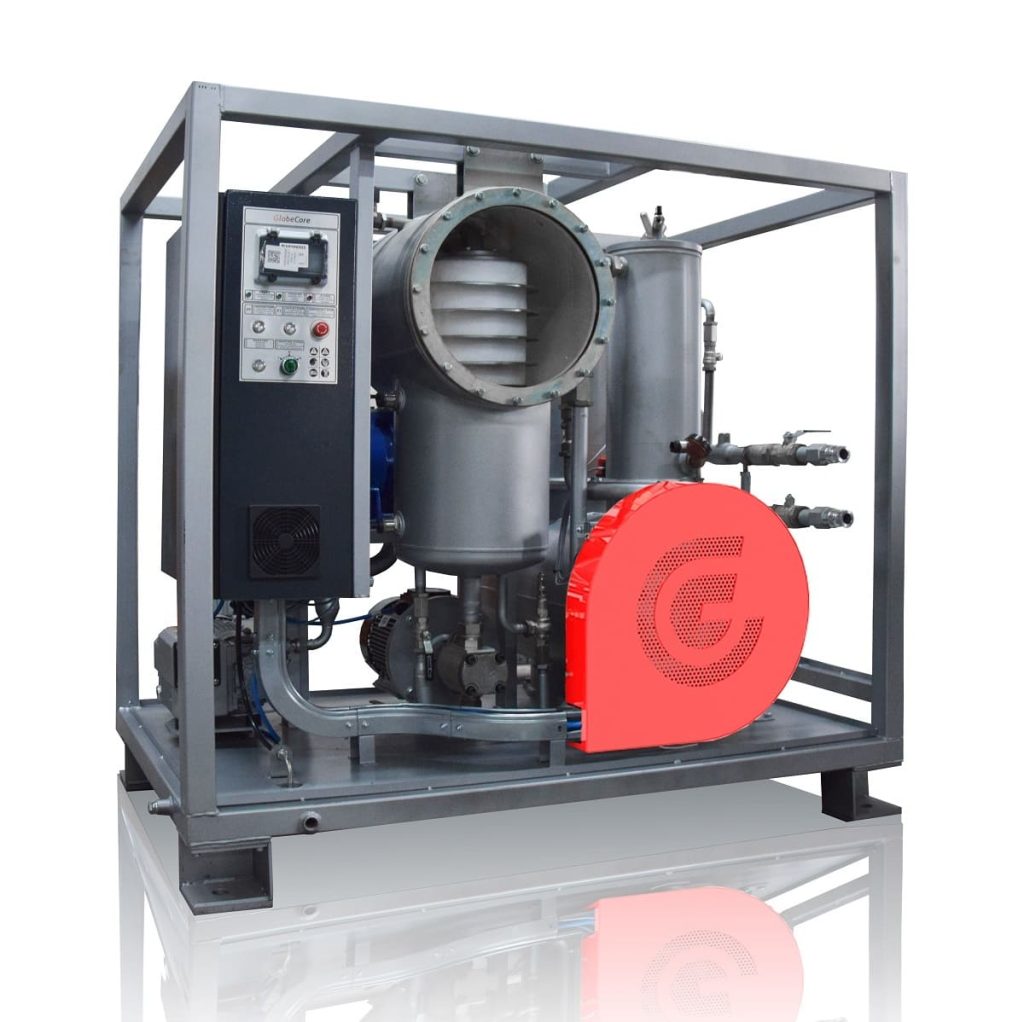

СММur-1L mobile oil plant
The СММur-1L continues the excellent functionality of this series of equipment, but is designed to be more compact and economical.
The СММur-1L purifies electrical insulation oil with viscosity below 70 cSt at 50o, removing water and particulate matter.
This device can heat oil-filled electrical equipment with hot transformer oil and evacuate air from vacuum systems.
The unit ensures oil purification according to class -/14/12 from initial class -/18/16 (contaminant content by weight less than 0.004%) after multiple passes of the product through the filters.
The CMM-1/1 is used in the course of commissioning, repairs and operation of oil-filled high voltage systems (power transformers, high voltage switches etc).
| No. |
Parameter |
Value |
| 1 | Capacity, m3/h (gpm) |
1 (4.4) |
| 2 | Max oil outlet temperature in heating mode, °С (°F) |
60 (140) |
| 3* | Processed oil parameters (initial moisture less than 100 ppm):
— filtration, μm — minimum dielectric strength, kV — ISO 4406 purity grade — moisture content, ppm |
5 75 -/14/12 10 ppm, or 5 ppm, or 5 ppm+ (optional) |
| 4 | Oil supply head, m (yards) |
20 (22) |
| 5 | Max inlet pressure, MPa (psi) |
0.1 (14.5) |
| 6 | Max outlet pressure, MPa (psi) |
0.25 (36.3) |
| 7 | Oil heater power, kW |
20.4 |
| 8 | Mean heater surface power, W/cm2, max |
1.1 |
| 9 | Rated power, kW |
25 |
| 10 | Three-phase AC power (voltage, frequency) |
Custom |
| 11 | Overall dimensions, mm (in), max
— length — width — height |
1,500 (59.1) 1,000 (39.4) 1,550 (61) |
| 12 | Weight, kg (lbs), max |
650 (1,433) |
Note: * Initial oil parameters:
- moisture below 0.005 % (50 ppm);
- oil heated to +60±5 °C (140±41 °F) for 30 minutes;
- gas content below 10 %.
- compact size. The unit can be carried by various vehicles (ground, sea, air);
- simple operation and maintenance;
- increase of dielectric strength from 15 to 75 kV in several passes;
- optimized heater design with increased heating rate without excessive power requirements;
- sight glass of sufficient size for simple visual monitoring of oil processing.
