CMM-15 Oil Degassing Plant
The GlobeCore CMM-15 is a high-capacity oil processing plant designed for degassing, solid particle removal and heating of transformer oil in power transformers rated up to 1,150 kV. Processing capacity reaches 15,000 liters per hour.

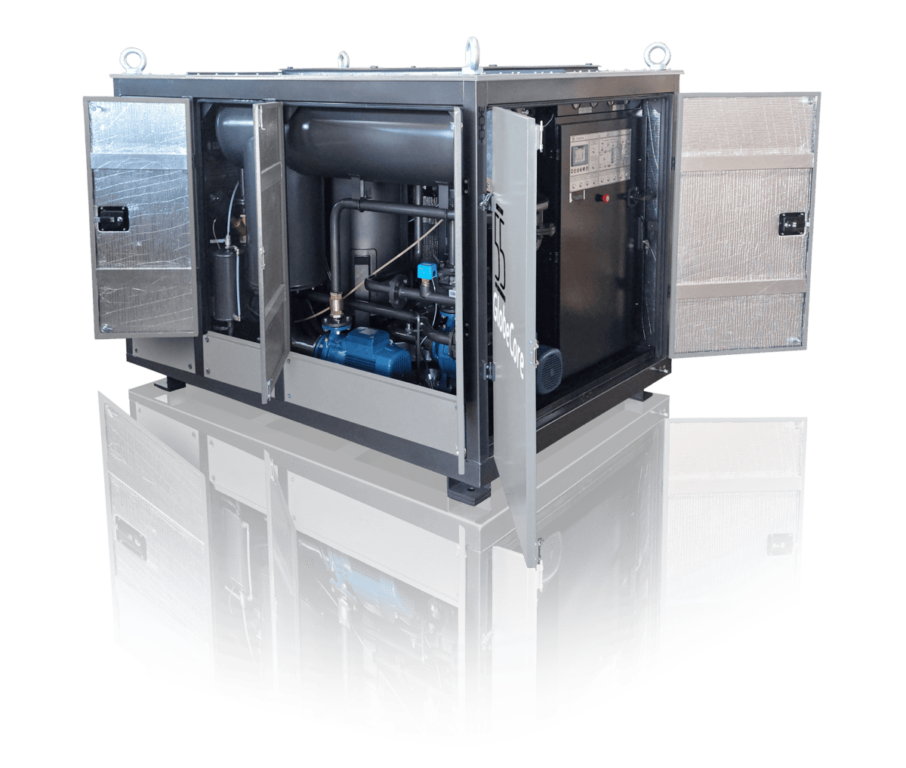

The unit is fully self-contained, with all components and assemblies enclosed behind protective metal panels and gas-spring loaded doors on the sides and rear for convenient access.
Internal components include a vacuum chamber, input and output oil pumps, coarse and fine filters, an oil trap, an oil heater, a pipeline and valve system, a vacuum pump section and a control cabinet — providing a complete, integrated oil treatment solution in a single compact unit.
| No. | Parameter | Value |
|---|---|---|
| 1 | Capacity (degassing, drying, and filtration mode), m3/hour (gpm) | 15 (66) |
| 2 | Capacity (heating and filtration mode), m3/hour (gpm) | 17 (74.8) |
| 3 | Processed oil parameters*: volumetric gas content, %, max mass moisture content, ppm, max filtration degree, micron |
0.1
10 ppm, or 5 ppm, or 5 ppm+ (optional) 1 |
| 4 | Oil outlet temperature in heating mode, ºС (ºF) | 90 (194) |
| 5 | Outlet pressure, MPa (psi) | 58 (0.4) |
| 6 | Max power, kW | 205 |
| 7 | Residual pressure in vacuum chamber during degassing, Pa (psi) | 267 (0.039) |
| 8 | Residual pressure in vacuum chamber during leak test, Pa (psi) | 26.7 (0.0039) |
| 9 | Power supply parameters | Any options as requested by the customer |
| 10 | Dimensions, mm (in) — length — height — width |
4,365 (171.8) 2,270 (89.4) 2,300 (90.6) |
| 11 | Weight, kg (lbs) | 3,100 (6,834) |
| Note:
*At initial oil parameters: volumetric gas content – below 5 %; **All equipment sold in the USA is designed to operate on 60 Hz AC power. |
||
- versatility;
- no need to use adsorbents for transformer oil drying;
- no air pollution and no waste streams to dispose of or store;
- simple operation and servicing;
- best oil quality even after one processing cycle;
- low power requirements;
- low noise levels.
