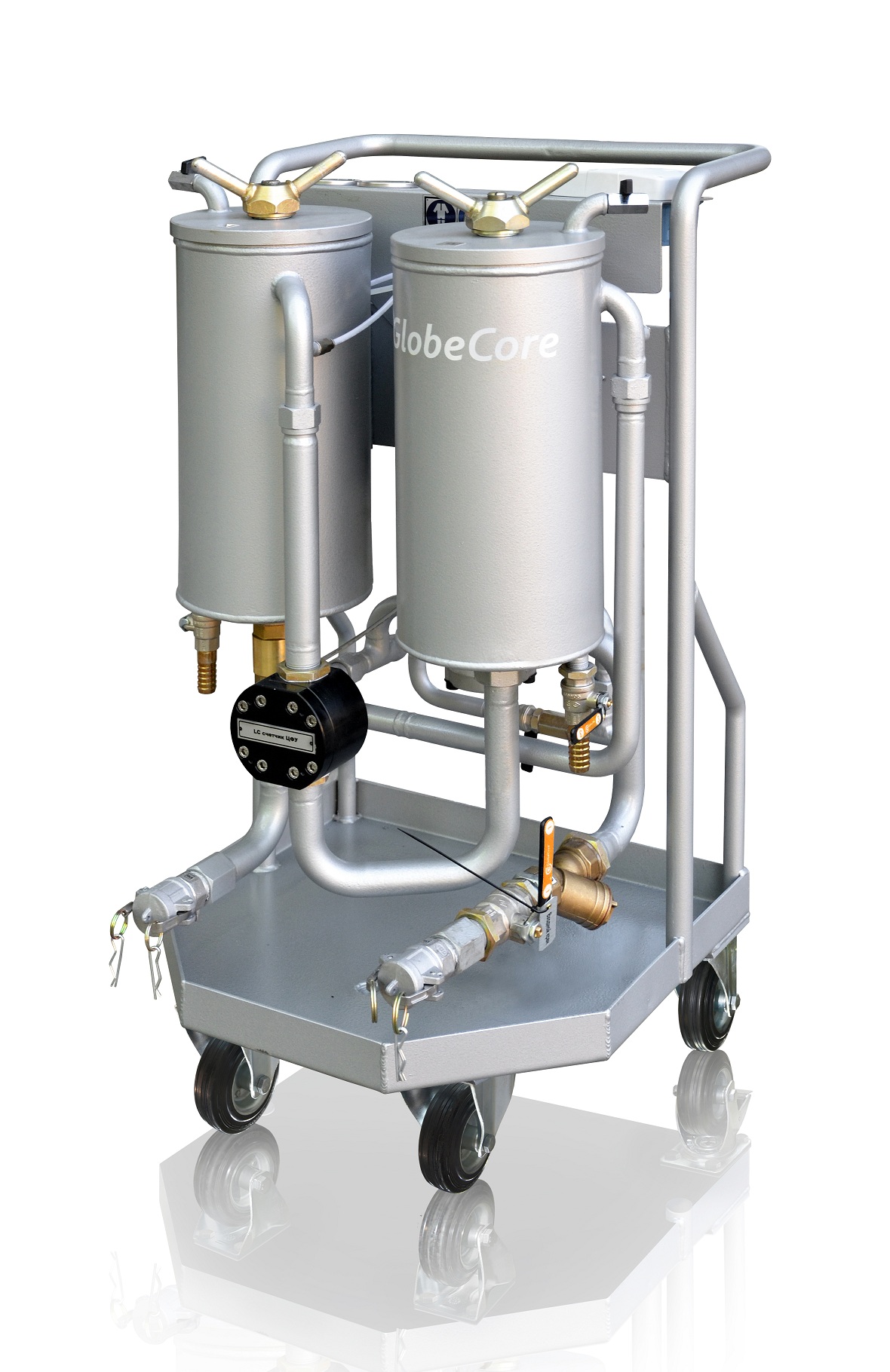

CFU Oil filtration unit
The CFU unit is an on-site portable filtration unit designed for removal of solid particles from lube and dielectric insulation oils with viscosity of no more than 70 cSt at 50°C/122°F.
Ambient conditions for operation:
- ambient temperature 283 to 308 K (+10 to +35°C/ 49.7 to 97.73°F);
- pressure 84 to 106.7 kPa (630 to 800 mm.hg);
- elevation up to 2000 meters/6561 feet above sea level;
- explosion and fire safe area.
|
Parameter |
Value |
||
|
CFU-1.7 |
CFU -4 |
CFU -6 |
|
| Capacity, m3/hour / gals. per hour |
1.7/450 |
4/1059 |
6/1588 |
| Filtration fineness, micron |
5 |
25 |
20 |
| Nominal power, kW |
2.2 |
3 |
3 |
| Output oil pressure, MPa |
0.25 |
0.3 |
0.3 |
| AC 50 Hz power voltage, V |
380 |
380 |
400 |
| Dimensions, mm/ft length/ width / height |
600/600/1100 2’/2’/3’8’’ |
580/560/1115 1’11’’/1’11’’/3’9’’ |
670/625/995 2’3’’/2’1’’/3’3’’ |
| Weight, kg/lbs |
10/22.1 |
70/154.7 |
135/298.35 |
The CFU is an on-site filtration cart featuring an adsorption filter that is designed for: (1) removal of solid particulate matter; (2) removal of ash; (3) removal of dissolved water; (4) removal of water-soluble acids; and (5) removal of alkali from industrial oil with viscosity of no more than 70 cSt at 50°C/122°F.
Ambient conditions for operation:
- ambient temperature +10 to +35°C/ 50 to 98°F);
- pressure 84 to106.7 kPa (630 to 800 in. hg);
- max elevation above sea level 2000 meters/6561 feet;
- Explosion and fire-proof area.
| Parameter | Value | |
| CFU 0.8 | CFU 0.5 | |
| Capacity, m3/hour / gals. per hour | 0.3…0.8*/79.4…211.7 | 0.5/132 |
| Filter element: | ||
| • depth filter, can be regenerated | “APRIS”- 6MI-II | FE-18 |
| • cartridge filter | – | FE-16 |
| Processed oil temperature, ºС/ ºF | 20…50/ 68…122 | 20…50/68…122 |
| Processed oil parameters: | ||
| • water removal, % | 92…98 | – |
| • solid particle removal, % | 93…97 | – |
| • filtration, micron | 3…5 | – |
| Nominal power, kW | 0.75 | 0.75 |
| Oil output pressure, MPa | 0.3 | – |
| Three phase 50Hz AC voltage, V | 380 | 380 |
| Dimensions, mm/ft, length/ width / height |
580/480/1350 1’11”/1’7”/4’5” |
640/640/1370 2’1”/2’1”/4/6” |
| Weight, kg/lbs | 60/132.6 | 100/221 |
*Depends on the type of oil processed
Note. Specifications are valid for oils, which contain no:
- surfactants or other substances facilitates trapping water in the oil;
- water emulsions created mechanically or chemically.
