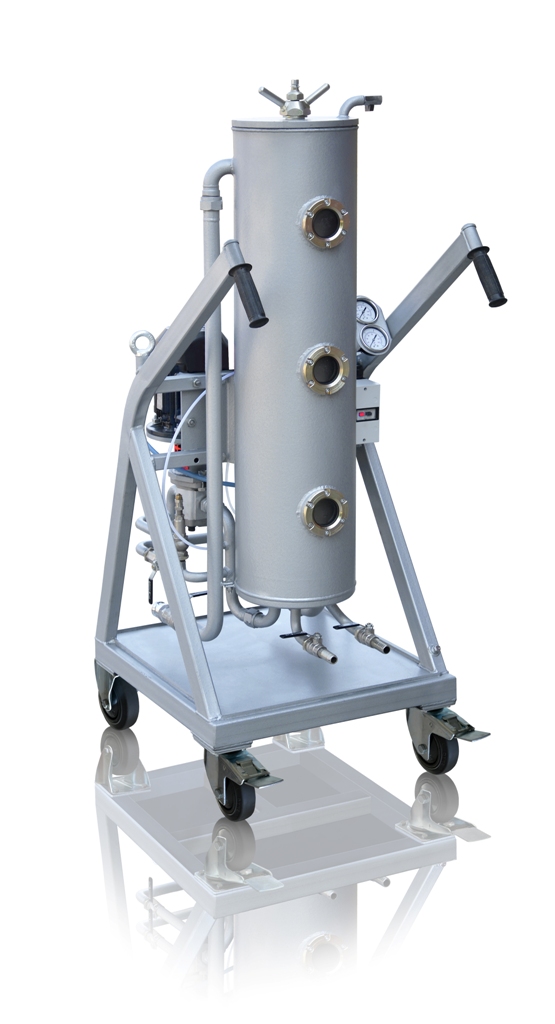

CMM-1CF Unit for removal of water from oil
The GlobeCore CMM-1CF is designed to treat heavily water-contaminated oils with water content exceeding 50%. It is suitable for hydraulic, turbine and transformer oils, as well as other industrial oils, diesel fuel, kerosene and petroleum products.
Water removal is based on the principle of coagulation: oil passes through a specialized filter that causes dispersed water molecules to combine into droplets, which then migrate down the filter surface and collect in a dedicated sump. For solid particle removal, the unit is equipped with a cartridge filter offering selectable filtration fineness of 1, 3, 5 or 25 microns.
| No |
Parameter |
Value |
|
| 1 | Capacity, m3/hour (gpm) |
1 (4.4) |
|
| 2 | Filtration degree, μm*; stage 1 / stage 2 |
25 |
5 |
| 3 | Water removal rate |
99 % |
|
| 4 | Power consumption, kW |
1.1 |
|
| 5 | Max pressure difference, MPa (psi) |
0.5 (72.5) |
|
| 8 | Oil outlet pressure, bar (psi) |
2…2.5 (29…36.3) |
|
| 9 | Three-phase 50Hz power supply voltage, V |
380 |
|
| 10 | Dimensions, mm (in), max
– length – width – height |
600 (23.6) 600 (23.6) 1,100 (43.3) |
|
| 11 | Weight, kg (lbs), max |
120 (264) |
|
The СММ-1CF is the lowest-capacity unit in the coagulation purification equipment range.
- Procession of oils with water content more than 50%;
- Saves all the properties of processed materials;
- Does not require any chemicals and heating of oil during the purification process;
- Low energy consumption;
- Mobility and compactness.
