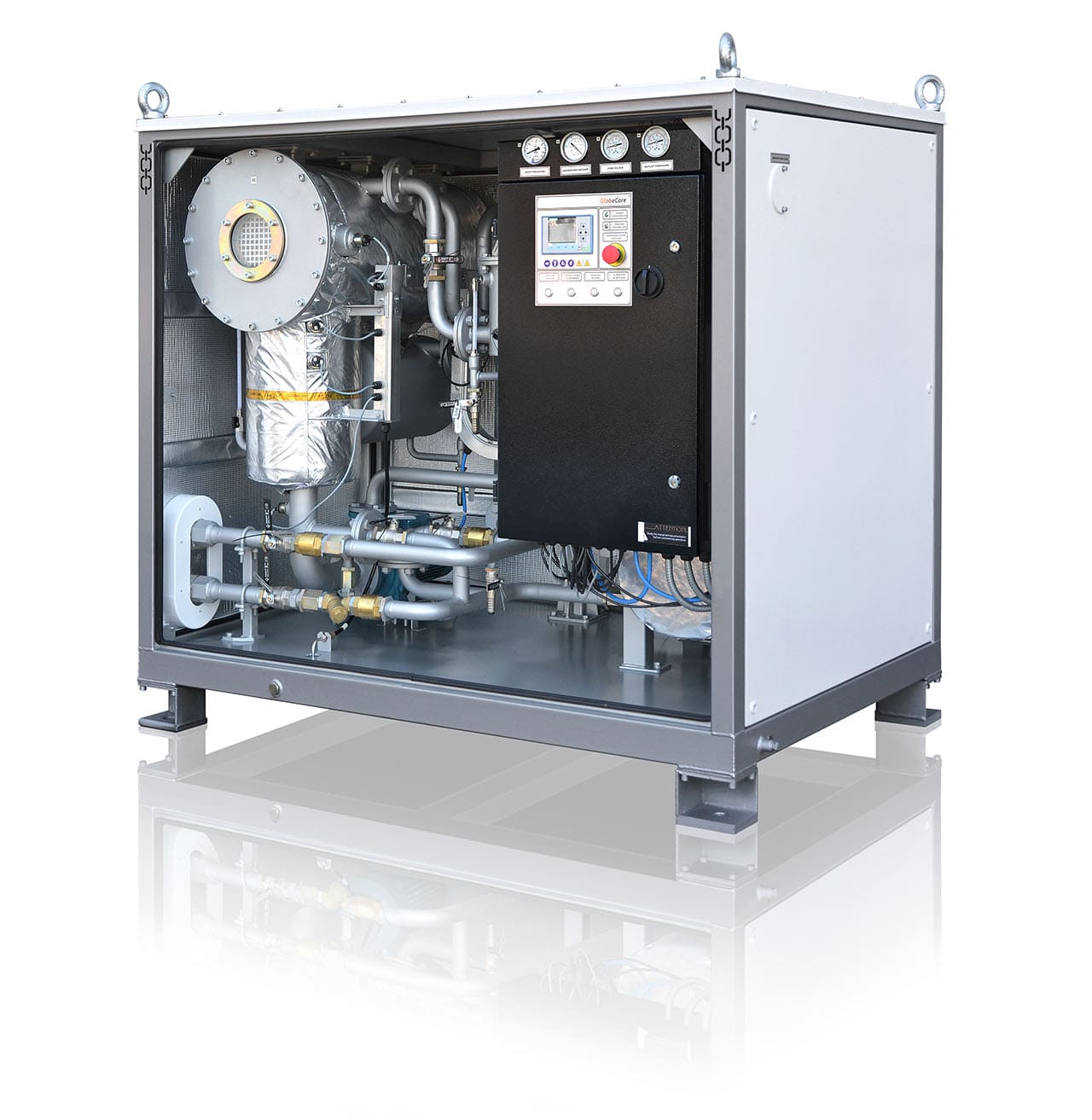

Turbine Oil Purification Plant CMM 4T
The GlobeCore CMM 4T – Oil Purifier unit is designed for the removal of solid particles and free and dissolved water from industrial turbine oils. Use of “Raschig Rings” in the vacuum column makes it ideal for “on-line” and “off line” treatment of turbine oil. The CMM 4T is offered as a stationary unit or can be mounted on castor wheels for better in shop mobility. Optional equipment includes a flow meter with a totalizer and 1 micron fine oil filter.
| No. | Parameter | Value |
|---|---|---|
| 1 | Capacity, m3/h (gpm) | 4 (17.6) |
| 2 | Waste oil parameters: — Mass moisture content, ppm, max — Filtration degree, µm, max |
10 ppm, or 5 ppm, or 5 ppm+ (optional)
5 or 3 (optional) |
| 3 | Max oil outlet temperature, ºС (ºF) | 55 (131) |
| 4 | Operating pressure, MPa (psi) | 0.4 (58) |
| 5 | Operating vacuum – vacuum pump – vacuum vessel |
-0.75 … -0.85 -0.65 … -0.75 |
| 6 | Oil heater power, kW | 29 |
| 7 | Specific oil heater power, W/cm2, max | 1.2 |
| 8 | Max power requirement, kW | 38 |
| 9 | Power supply parameters — voltage, V — AC frequency, Hz |
380 50 |
| 10 | Overall dimensions, mm (in) — length — width — height |
2,060 (81.1) 1,130 (44.5) 1,980 (78) |
| 11 | Weight, kg (lbs), max | 700 (1,543) |
- At the request of a customer a unit can be: stationary (in a container on a frame, under a tent) or mobile/portable (on wheels, on a trailer).
- Easy to operate.
- After purification oil characteristics fully correspond the existing norms and standards.
- Saves storage space for waste oil.
- Saves costs on buying new oil and recycling waste oil;
- Preserves environment
- Energy efficient.
