CMM-G Wind Turbine Gearbox Oil Changer
The CMM-G unit is designed for a three-stage process of changing oil in wind turbine gearboxes (draining old oil, flushing the gearbox and filling it with new oil). The unit allows for quick and efficient servicing of wind turbine oil system. The unit can be used for servicing wind turbines made by many different manufacturers. The CMM-G can also heat clean oil.
The unit changes mineral and synthetic oil with the following properties:
- kinematic viscosity at 40°С – 8…50 mm2/sec;
- density at 20°С, – 800…950 kg/m3;
- ISO 4406 purity class – 14 or better..
CMM-G Oil Changer Unit

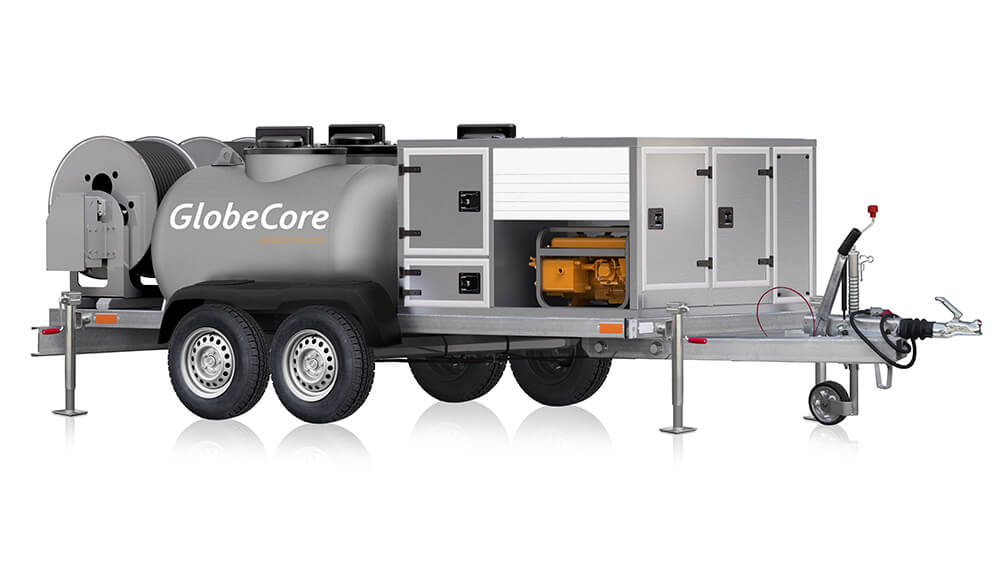

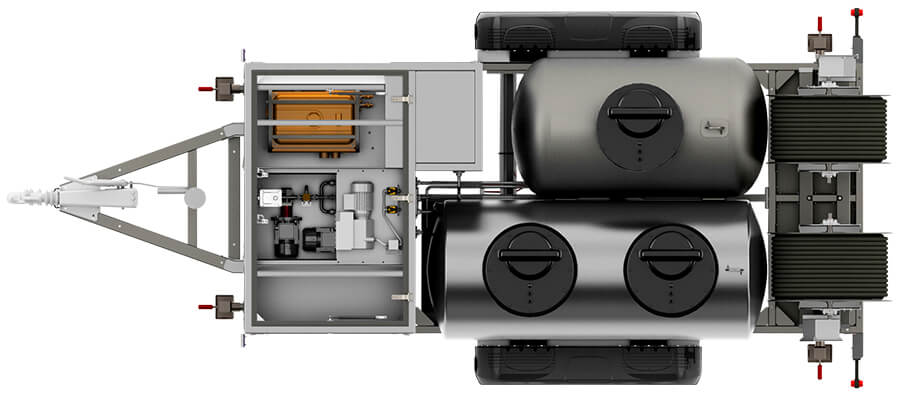

The CMM-G is based on a trailer and consists of housing, clean and used oil tanks and hose drums. The side walls of the housing are equipped with doors for access and servicing. An accessory storage compartment is installed in the left side of the housing. A compartment with a rolling door contains a generator to power the unit if grid connection is unavailable. Process parameters and automatic valves are managed by a controller. The end of the output hose is equipped with an oil meter.
Specifications
|
Parameter |
Value |
||
|
1. Oil output rate, m3/hour, not less than |
0,8 |
||
|
2. Oil drain rate, m3/hour, not less than |
0,5 |
||
|
3. Max oil output temperature in heating mode, ºС |
70 |
||
|
4. Output pressure, MPa |
1,3 |
||
|
5. Oil heater power, kW, max |
4,8 |
||
|
6. Max power consumption, kW |
8 |
||
|
7. Power source |
|||
|
– voltage, V |
380 |
||
|
– AC frequency, Hz |
50 |
||
|
8. Dimensions, mm, max |
|||
|
– length |
5700 |
||
|
– width |
2400 |
||
|
– height |
1650 |
||
|
9. Empty weight, kg, max |
2500 |
||
Before switching to a different oil type, do the following:
- flush the unit to prevent mixing of different oil types (mineral and synthetic);
- change filter elements
CMM-G Oil Changer Operation Modes
250 gallon/950 liter tanks
Old oil drain mode
In this mode, the unit’s vacuum pump extracts oil from the turbine gearbox into the unit.
Gearbox flush mode
In this mode, flushing oil is supplied to a height of up to 105 meters, and is fed into the gearbox at 5 bar pressure, washing away the remaining used oil and particulate matter.
Heating and filtration mode
This mode is required for quick heating and filtration of clean oil before filling. After heating to 70°С, the oil is supplied to the gearbox.
When heating and filtration mode is engaged, it is possible to simultaneously supply oil to the gearbox and heat the next batch of oil for filling the next turbine.
Clean oil supply mode
In this mode, the unit’s pump supplies oil to a height of up to 105 meters. At the same time, the oil is filtered by 3 and 25 μm filters.
Advantages
The CMM-G gearbox oil changer offers the following advantages:
- mobility;
- harsh climate operation capability;
- full process automation;
- automatic correction of oil flow when process conditions change (filter condition, oil feed height etc);
- draining of oil and filling of new oil takes less than 1 hour;
- drums are equipped with electric drives for fast hose reeling.
CMM-G IS
7 inch touch panel
Automatic hose reeling on drums
Flow control system
Smart heating control
Generator power
2 axle trailer mobile design
Power grid connection capability
Servicing height up to 100 meters
Full automation
| No. | Parameter | Value |
| 1 | Filling rate, m3/h (gpm), at least | 0.8 (3.5) |
| 2 | Drain rate, m3/h (gpm), at least | 0.5 (2.2) |
| 3 | Max power requirement, kW | 8 |
| 4 | Power supply
|
380 50 |
| 5 | Dimensions, mm (in), max
|
5,700 (224.4) 2,400 (94.5) 1,650 (65) |
| 6 | Empty weight, kg (lbs), max | 2,500 (5,512) |
